If your car struggles to start, the symptom timing tells the story: trouble at the very first crank usually points to the battery, while stalling or dimming after the engine is already running points to the alternator. Check resting voltage first. A healthy battery reads about 12.6 volts or more with the engine off. If you smell rotten eggs, see a swollen battery case, or notice smoke, stop driving and call for a tow rather than attempting a jump-start yourself.
TL;DR:
- If the car struggles to start at first crank, the battery is likely the issue, especially if resting voltage is below 12.6 volts.
- Symptoms appearing during driving, like dim lights or warning lights, typically indicate a failing alternator, with voltage below 13.8 volts suggesting undercharging.
- Replacing the battery without checking the alternator risks recurring problems because a bad alternator drains or overcharges the new battery.
- Regular testing with a multimeter can distinguish between battery and alternator issues, with under 12.2 volts at rest signaling discharge, and below 13.8 volts when running suggesting charging problems.
- Signs that require professional diagnosis include repeated stalling after jump-starts, burning smells, or voltage readings outside the normal range of 12.6 to 14.7 volts.
Table of Contents
- How the Battery and Alternator Work Together
- Signs That Point to a Bad Battery
- Signs That Point to a Bad Alternator
- Simple Tests to Tell Battery vs Alternator Problems
- What to Do Next: DIY Steps or a Mechanic
- Why We Test Before We Replace Anything
- Get Your Charging System Checked at Kwik Kar of Van Alstyne
- Sources
- FAQ

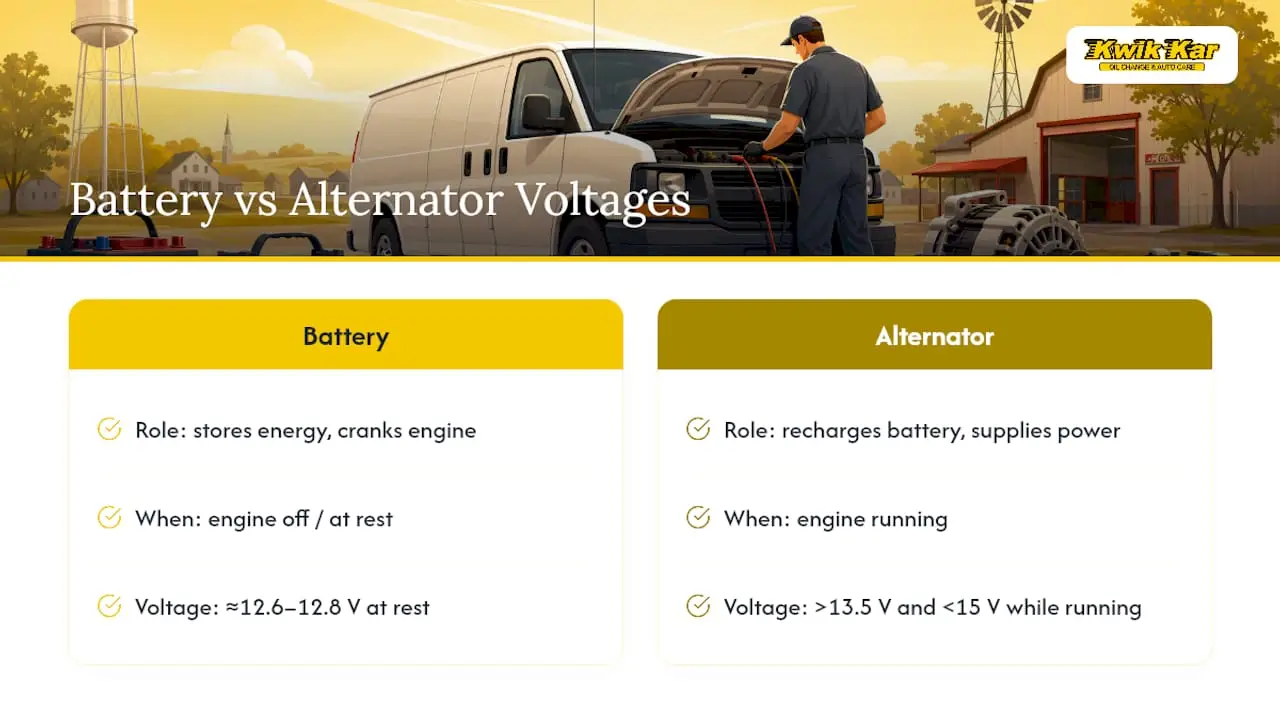

How the Battery and Alternator Work Together
The battery and alternator split one job into two halves, and mixing up which half failed is the most common (and most expensive) mistake drivers make when troubleshooting alternator vs battery symptoms.
The battery stores electrical energy and delivers the burst of current needed to crank the engine. It also powers your lights, radio, and accessories when the engine is off. A fully charged battery at rest reads roughly 12.6 to 12.8 volts.
Once the engine starts, the alternator takes over. It recharges the battery and supplies power to everything running, from headlights to the climate control fan. A healthy alternator should push out a voltage in the typical charging range above 13.5 volts and below about 15 volts while the engine runs.
Here’s the part people miss: a bad alternator will slowly drain a perfectly good battery, and a battery that’s constantly undercharged wears out early even if the alternator is basically fine. That’s why the two failures so often get confused, and why voltage numbers matter more than guesswork.
Signs That Point to a Bad Battery
Battery trouble almost always shows up before the engine turns over, not after. Watch for these patterns:
- Slow, labored cranking or a rapid clicking sound when you turn the key
- Needing a jump-start more than once in the same week
- The car starts fine after a jump and runs normally the rest of the drive
- White, ashy corrosion on the battery terminals
- A swollen or bulging battery case, or a faint sulfur smell under the hood
- Dim interior lights or a weak horn when the engine is off
Battery age is one of the biggest clues you have. Most car batteries last 3 to 5 years, and if yours is pushing that window and showing any of the signs above, the battery is the more likely culprit. Extreme summer heat is often the real damage done, even though the battery tends to actually fail once cooler weather arrives.
If the starter clicks but the engine won’t turn at all, that can also mimic a dead battery. Our guide on starter and electrical repair covers how to tell a weak battery from a failing starter motor.
Pro Tip: Before you assume the worst, wipe the terminals clean and make sure the cable clamps are snug. Loose or corroded connections cause symptoms that look exactly like a dying battery, and the fix costs nothing.
Signs That Point to a Bad Alternator
Alternator symptoms tend to show up while you’re driving, not just at startup, and that timing difference is the single best clue you have.
- The car starts after a jump but stalls again within 10 to 15 minutes
- Headlights or dashboard lights dim at idle, then brighten as you accelerate
- A battery or charge warning light stays lit while you drive
- Radio static, whining noise through the speakers, or flickering gauges
- A burning rubber smell or a squealing, grinding noise from the engine bay
- You may replace the battery multiple times while symptoms persist
That last one is the pattern that trips up the most drivers, and it’s worth calling out on its own. If a jump-start gets the car running but it dies again soon after, that specific pattern points to the alternator, not the battery, in most cases.
An alternator that’s overcharging can actually boil the electrolyte inside a battery, while one that’s undercharging deep-cycles the battery and shortens its life. Either fault damages the battery even though the battery itself started out fine. Most alternators last 7 to 10 years under normal use, so a car with a newer battery that still won’t hold a charge deserves a look at the charging system before anyone reaches for another battery.
Simple Tests to Tell Battery vs Alternator Problems
You don’t need a shop to rule out the obvious. A basic multimeter, available at most auto parts stores, gets you most of the way there.
- Test resting voltage. With the engine off for at least 30 minutes, connect the multimeter to the battery terminals. A reading near 12.6 volts is healthy; anything under 12.2 volts means the battery is significantly discharged.
- Test running voltage. Start the engine and check the same terminals. A reading between 13.8 and 14.7 volts means the alternator is charging correctly. Below 13.5 volts suggests the alternator isn’t keeping up; above 15 volts suggests it’s overcharging.
- Watch jump-start behavior. If the car starts and keeps running fine, the battery was likely the whole problem. If it starts and then dies again within minutes, suspect the alternator.
- Get a load test if the numbers are unclear. A resting-voltage check alone can be misleading, since a battery can show a decent resting number and still fail under real cranking load. A proper conductance or load test, along with a charging-system test under electrical load, is what a shop uses to confirm the diagnosis before replacing anything.
Stop driving immediately if the running voltage spikes past 15 volts, if you smell burning insulation, or if the dashboard lights flicker erratically at speed. Those are signs the electrical system is actively damaging itself.
What to Do Next: DIY Steps or a Mechanic
A few checks are safe to do yourself. Clean corroded terminals with a wire brush, make sure both cable clamps are tight, and give the serpentine belt a visual check for cracking or glazing, since a slipping belt can starve the alternator of the rotation it needs. If you jump-start the car, connect cables in the correct order and let the donor vehicle run for a few minutes before attempting to start yours.
Some signs mean it’s time to stop troubleshooting and call for help instead:
- A sulfur smell, visible corrosion buildup, or a swollen battery case
- Repeated stalling after a jump-start
- Voltage readings well outside the 12.6 to 14.7 volt range
- Burning smells or grinding noise from the alternator area
A full diagnostic checks resting and running voltage, runs a battery conductance or load test, measures alternator output under electrical load, and inspects belt tension and cable connections with an EV Battery Health Check. Skipping straight to a new battery when the alternator is actually at fault just means you’ll be back in the same spot in a few weeks, having paid for a part you didn’t need. For deeper prevention, our winter electrical system guide covers how seasonal temperature swings stress both components.
Pro Tip: If you’re not sure which reading is “normal” for your specific car, don’t rely on memory. Write down the resting and running numbers you get, and hand them to your technician. It saves diagnostic time and gets you a more accurate answer.
Why We Test Before We Replace Anything
We’ve seen it too many times: a driver replaces the battery, and two weeks later they’re back with the same complaint because nobody checked the alternator’s output under load. That’s why our ASE-certified technicians run the full charging-system check, not just a quick voltage glance, before recommending a repair. Our digital vehicle inspections include photos of what we find, so you see exactly what’s failing and why, with no guessing involved. If you’d rather skip the multimeter altogether, we’re happy to run the diagnostic for you.
— Kwik Kar
Get Your Charging System Checked at Kwik Kar of Van Alstyne
Guessing wrong between a battery and an alternator usually means paying twice. Kwik Kar of Van Alstyne runs a full charging-system diagnostic, resting voltage, running voltage under load, and a proper battery test, so you replace the part that’s actually failing and nothing else.
Technicians document every finding with photos through a digital vehicle inspection, so you can see the exact voltage readings and part condition before any work begins. Many repairs include warranty coverage, and if your electrical trouble turns out to be something else, like a starter or wiring issue, we’ll walk you through that too. Drivers in Van Alstyne, Anna, Howe, Melissa, and Gunter can start with our diagnostics services page to see what’s included, or browse our full list of auto repair services before booking. Call us at (903) 712-5945 or request an appointment online to get your charging system checked before a weak battery or a failing alternator leaves you stranded.
Sources
- Battery vs Alternator: How to Tell Which One Is Actually Failing | Mr Automotive Repair
- Bad Alternator vs. Bad Battery: A Quick Guide | AAA Automotive
- Signs of a Bad Battery vs. Alternator Issue | Firestone Complete Auto Care
- Bad Battery vs. Bad Alternator: Which One Is the Problem? | AutoZone
FAQ
How do I know if it’s my battery or my alternator?
Check the timing of the failure: trouble cranking the engine at startup usually means the battery, while stalling or dimming lights after the car is already running points to the alternator. A resting voltage near 12.6 volts with the engine off, and 13.8 to 14.7 volts while running, confirms both are working correctly.
How does a car act when the alternator is going bad?
Expect dimming or flickering lights that change with engine RPM, a lit battery warning light while driving, radio static, and sometimes a burning smell or grinding noise from the engine bay. A telltale sign is stalling again 10 to 15 minutes after a jump-start.
What can be mistaken for a bad alternator?
A loose or corroded battery terminal, a slipping serpentine belt, or a failing starter can all produce symptoms that look like alternator trouble. A proper charging-system load test, rather than guessing from symptoms alone, is the only reliable way to rule those out.
How long will a battery last with a bad alternator?
It varies with driving habits, but a battery under constant undercharging typically fails within days to a few weeks, since it never gets a full recharge between drives. An overcharging alternator can damage a battery even faster by boiling the internal electrolyte.
Can a bad battery damage a good alternator?
A severely drained or shorted battery can force the alternator to work harder than it’s designed to, which shortens the alternator’s life over time. That’s one more reason to have both tested together rather than replacing one part in isolation.
